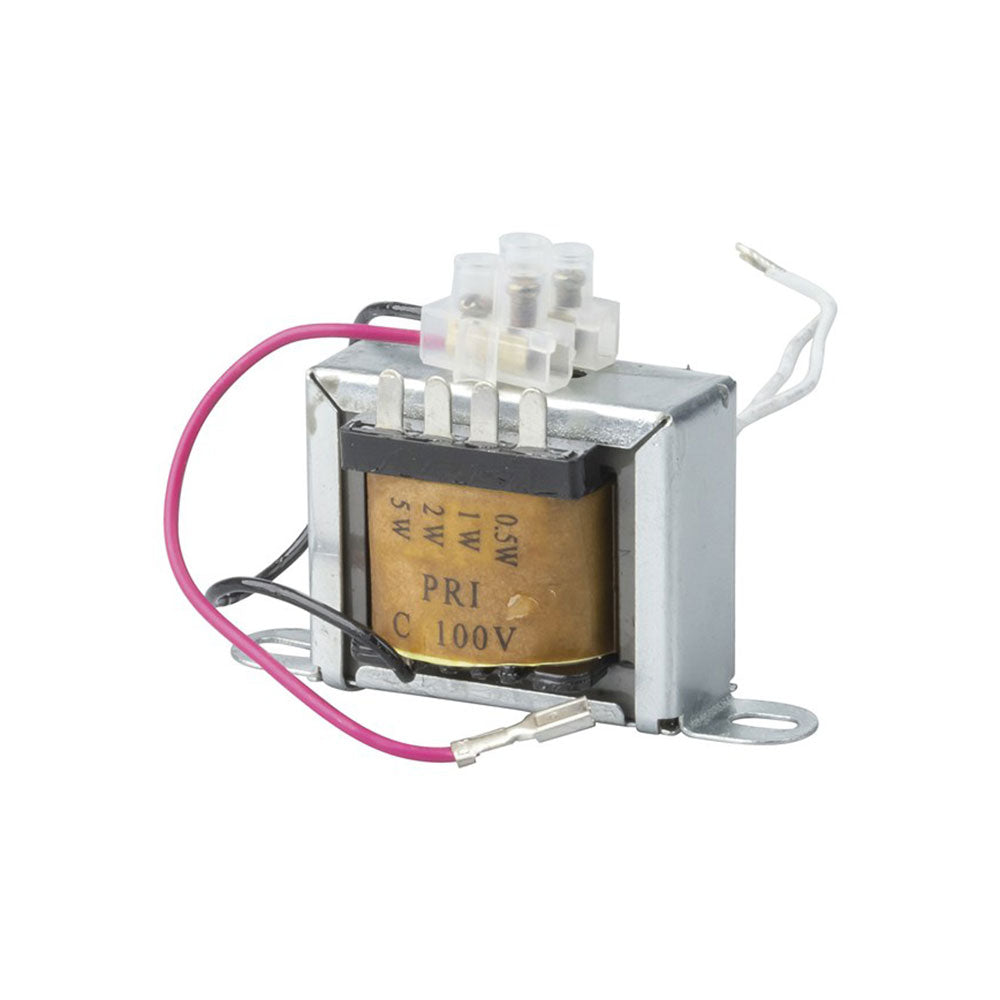

Line Speaker Transformer 5W

100V Line speaker systems are used in large area speaker systems such as supermarkets to ensure minimal loss over the long speaker cables. These transformers are used to tap the 100V (or 70V 1/2 power) public address amplifier lines to use an 8 ohm speaker. Made with grain oriented steel for good frequency response. Good dynamic range. Primary taps enable you to select power level for 8 ohm speaker. Connect primary to C (100V) and tap for whatever sound level is required from 0.5-5W rms.

Supplied with terminal block mounted on top of transformer.

Product Specifications

• Mounting hole centres 53mm
• Primary Power
• 20K 0.5W
• 10K 1W
• 5K 2W
• 2.5K 5W
